| Two Piece Design (Flange End) Ball Valves |
Suitable for : - Water, Oil and Gas |

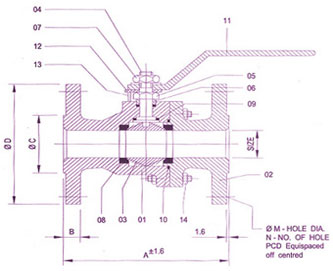

| No. |
Description |
Material |
Qty. |
| 01 |
Body |
C.I. / C.S. / S.S. 304/ S.S. 316 |
1 |
| 02 |
Body connector |
C.I./C.S./S.S. 304 / S.S. 316 |
1 |
| 03 |
Ball |
AISI 304 / AISI 316 |
1 |
| 04 |
Stem |
AISI 304 / AISI 316 |
1 |
| 05 |
Gland nut |
AISI 304 / AISI 316 |
1 |
| 06 |
Gland bush |
AISI 304 / AISI 316 |
1 |
| 07 |
Lock Nut |
AISI 304 / AISI 316 |
1 |
| 08 |
Seat Ring |
PTFE |
2 |
| 09 |
Stem Seal |
PTFE |
2 |
| 10 |
Body Sealent ring |
PTFE |
1 |
| 11 |
Wrench |
C.S. / S.S. 304 / S.S. 316 |
1 |
| 12 |
Stop |
C.S. / S.S. 304 / S.S. 316 |
1 |
| 13 |
Stud & Nut |
C.S. / S.S. |
1 |
|
| |
|
| Technical Data - Ball Valves |
| Design & Manufacturing STD |
: |
API 602 |
| Testing & Inspection STD |
: |
API 598/ BS : 5146 |
| Face to Face |
: |
as per ANSI B 16.10 |
| End connections |
: |
Flanged as per ANSI B 16.5 |
| Drilling |
: |
Table D,E, F, ASA 150 #, ASA 300 # For Flange Dim. |
|
| Primary service reating & test pressure |
| Class |
Working press. |
HYD. Test pressure |
| Body |
Seat |
Temp. |
| 150 |
150 PSIG |
425 PSIG |
300 PSIG |
200 °F |
| 300 |
300 PSIG |
1100 PSIG |
800 PSIG |
200 °F |
| Air Test - Seat 80 PSIG ± 10 PSIG |
|
| |
|
| Class - 150 |
| Size |
A |
B |
øC |
øD |
øM |
N |
PCD |
| 15 |
109 |
11.1 |
35 |
89.0 |
16 |
4 |
60.4 |
| 20 |
119 |
12.7 |
43 |
98.0 |
16 |
4 |
70.0 |
| 25 |
128 |
14.2 |
51 |
108.0 |
16 |
4 |
79.0 |
| 32 |
141 |
15.7 |
64 |
117.0 |
16 |
4 |
89.0 |
| 40 |
166 |
17.5 |
73 |
127.0 |
16 |
4 |
98.5 |
| 50 |
177 |
19.0 |
92 |
152.0 |
19 |
4 |
120.5 |
| 65 |
190 |
22.3 |
105 |
178.0 |
19 |
4 |
140.0 |
| 80 |
202 |
24.0 |
127 |
190.5 |
19 |
4 |
152.4 |
| 100 |
230 |
24.0 |
157 |
229.0 |
19 |
8 |
190.5 |
| 125 |
255 |
24.0 |
186 |
254.0 |
22 |
8 |
216.0 |
| 150 |
266 |
25.0 |
216 |
279.0 |
22 |
8 |
241.0 |
| 200 |
291 |
28.5 |
270 |
343.0 |
22 |
8 |
298.0 |
| 250 |
331 |
30.0 |
324 |
406.0 |
25 |
12 |
362.0 |
|
| Class - 300 |
| Size |
A |
B |
øC |
øD |
øM |
N |
PCD |
| 15 |
141 |
14.2 |
35 |
95.0 |
16 |
4 |
66.5 |
| 20 |
153 |
15.7 |
43 |
117.0 |
19 |
4 |
82.5 |
| 25 |
164 |
17.5 |
51 |
124.0 |
19 |
4 |
89.0 |
| 32 |
177 |
19.0 |
64 |
133.0 |
19 |
4 |
98.5 |
| 40 |
191 |
20.5 |
73 |
155.5 |
22 |
4 |
114.0 |
| 50 |
215 |
22.0 |
92 |
165.0 |
19 |
8 |
127.0 |
| 65 |
240 |
25.0 |
105 |
190.5 |
22 |
8 |
149.0 |
| 80 |
282 |
28.5 |
127 |
209.5 |
22 |
8 |
168.0 |
| 100 |
306 |
32.0 |
157 |
254.0 |
22 |
8 |
200.0 |
| 125 |
380 |
35.0 |
186 |
279.4 |
22 |
8 |
235.0 |
| 150 |
402 |
36.5 |
216 |
317.5 |
22 |
12 |
270.0 |
| 200 |
421 |
41.0 |
270 |
381.0 |
25 |
12 |
330.0 |
| 250 |
458 |
47.5 |
324 |
444.5 |
29 |
16 |
387.0 |
| all dimesion are in mm |
|
|
Note : Due to constant up gradation, dimensions are subject to change by the manufacturer. |
|
|
