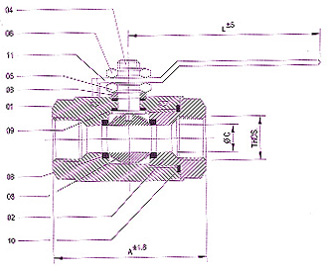

| Ball Valves Screwed Single Piece and Three Piece |
Suitable for : - Water, Oil and Gas |
| Technical Data |
| Design & Manufacturing STD |
: |
BS 5351, API 602, IS:9890 |
| Testing & Inspection STD |
: |
API 598/ BS : 5146 |
| Face to Face |
: |
as per ANSI B 16.10 |
| End connections |
: |
16 Bar max (228 PSI) |
| Temp. Rating |
: |
Screwed : (BSP, BSPT, NPT) |
|
| No. |
Description |
Material |
Qty. |
| 01 |
Body |
C.I. / C.S. / S.S. 304/ S.S. 316 |
|
| 02 |
Body connector |
C.I. / C.S. / S.S. 304/ S.S. 316 |
|
| 03 |
Ball |
AISI 304 / AISI 316 |
1 |
| 04 |
Stem |
AISI 304 / AISI 316r |
1 |
| 05 |
Gland nut |
AISI 304 / AISI 316 |
1 |
| 06 |
Gland bush |
AISI 304 / AISI 316 |
1 |
| 07 |
Lock Nut |
AISI 304 / AISI 316 |
|
| 08 |
Seat Ring |
PTFE |
|
| 09 |
Stem Seal |
PTFE |
|
| 10 |
Body Sealent ring |
PTFE |
|
| 11 |
Wrench |
M.S. / S.S. |
|
|
| Size |
A |
øC |
L |
THDS
BSP/ BSPT/ NPT |
| 15 |
73 |
13 |
126 |
1/2" |
| 20 |
76 |
19 |
126 |
3/4" |
| 25 |
88 |
26 |
126 |
1" |
| 32 |
100 |
33 |
176 |
1.1/4" |
| 40 |
118 |
39 |
176 |
1.1/2" |
| 50 |
126 |
51 |
176 |
2" |
| 65 |
152 |
62 |
253 |
2.1/2" |
| 50 |
170 |
76 |
253 |
3" |
| all dimesion are in mm |
|
| |
| Primary service reating & test pressure |
| Class |
Working press. |
HYD. Test pressure |
| Body |
Seat |
Temp. |
| 150 |
150 PSIG |
500 PSIG |
250 PSIG |
200 °F |
| Air Test - Seat 80 PSIG ± 10 PSIG |
|
|

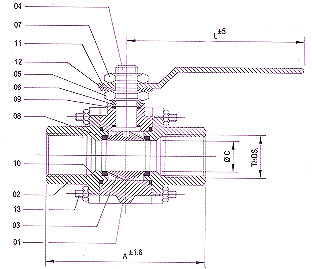

| Three Piece (Screw End) |
| |
Suitable for : - Water, Oil and Gas |
| No. |
Description |
Material |
Qty. |
| 01 |
Body |
C.I. / C.S. / S.S. 304/316 |
1 |
| 02 |
Body connector |
C.I. / C.S. / S.S. 304/316 |
1 |
| 03 |
Ball |
AISI 304 / AISI 316 |
1 |
| 04 |
Stem |
AISI 304 / AISI 316 |
1 |
| 05 |
Gland nut |
AISI 304 / AISI 316 |
1 |
| 06 |
Gland bush |
AISI 304 / AISI 316 |
1 |
| 07 |
Lock Nut |
AISI 304 / AISI 316 |
1 |
| 08 |
Seat Ring |
PTFE |
2 |
| 09 |
Stem Seal |
PTFE |
2 |
| 10 |
Body Sealent ring |
PTFE |
2 |
| 11 |
Wrench |
M.S. / S.S. |
1 |
| 12 |
Stop |
M.S. |
1 |
| 13 |
Stud & Nut |
C.S./ S.S. |
4 |
|
| |
|
| Technical Data |
| Design & Manufacturing STD |
: |
BS 5351, API 602 |
| Testing & Inspection STD |
: |
API 598/ BS : 5146 |
| End Connections |
: |
BSP, BSPT, NPT, SOCKET WELD |
| Socket Weld & Threaded to |
: |
ANSI B 16.11 / ANSI B 1.20.1 |
|
| Primary service reating & test pressure |
| Class |
Working press. |
HYD. Test pressure |
| Body |
Seat |
Temp. |
| 150 |
150 PSIG |
425 PSIG |
300 PSIG |
200 °F |
| 300 |
300 PSIG |
1100 PSIG |
800 PSIG |
200 °F |
| 800 |
800 PSIG |
3000 PSIG |
2000 PSIG |
200 °F |
| Air Test - Seat 80 PSIG ± 10 PSIG |
|
| |
|
| Class 150 |
| Size |
A |
øC |
L |
THDS. BSP/ BSPT/ NPT |
F |
G |
H |
| 15 |
91 |
13 |
155 |
1/2" |
21.8 |
29 |
12.7 |
| 20 |
96 |
19 |
160 |
3/4" |
27.3 |
35 |
19.0 |
| 25 |
101 |
25 |
160 |
1" |
34.1 |
43 |
22.0 |
| 32 |
109 |
32 |
160 |
1.1/4" |
43.0 |
54 |
22.0 |
| 40 |
121 |
38 |
178 |
1.1/2" |
49.0 |
58 |
22.0 |
| 50 |
131 |
50 |
178 |
2" |
61.3 |
71 |
23.0 |
|
| Class 800 |
| Size |
A |
øC |
L |
THDS. BSP/ BSPT/ NPT |
F |
G |
H |
| 15 |
69 |
13 |
115 |
1/2" |
21.8 |
29 |
12.7 |
| 20 |
80 |
15 |
122 |
3/4" |
27.3 |
35 |
19.0 |
| 25 |
96 |
19 |
153 |
1" |
34.1 |
43 |
22.0 |
| 32 |
106 |
23 |
178 |
1.1/4" |
43.0 |
54 |
22.0 |
| 40 |
116 |
33 |
178 |
1.1/2 |
49.0 |
58 |
22.0 |
| 50 |
129 |
36 |
178 |
2" |
61.3 |
71 |
23.0 |
| all dimesion are in mm |
|
|
Note : Due to constant up gradation, dimensions are subject to change by the manufacturer.
|
|
|
