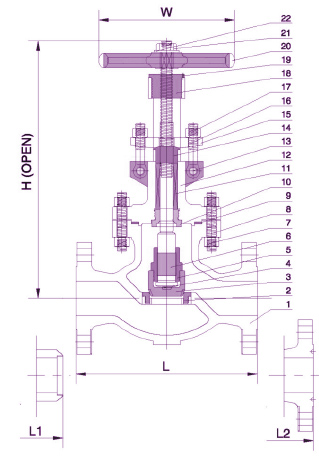

| Globe Valves - ASA Class 150/300 |
 |
| NO. |
DESCRIPTION |
MATERIAL |
QTY |
| 01 |
BODY |
ASTM A 216 GR.WCB |
1 |
| 02 |
BONNET |
ASTM A 216 GR.WCB |
1 |
| 03 |
SEAT RING |
AISI 410 (13%CR) |
1 |
| 04 |
DISC |
AISI 410 (13%CR) |
1 |
| 05 |
STEM |
AISI 410 (13%CR) |
1 |
| 06 |
STEM NUT |
AISI 410 (13%CR) |
1 |
| 07 |
BONNET BUSH |
AISI 410 |
1 |
| 08 |
GLAND |
CARBON STEEL |
1 |
| 09 |
GLAND PACKING |
METALIC WIRE REINFORCED GRAPHITED ASBESTOS /GRAFOIL |
- |
| 10 |
YOKE SLEEVE |
NI-RESIST |
1 |
| 11 |
BONNET GASKET |
COMPRESSED ASBESTOS FIBRE/SOFT STEEL |
1 |
| 12 |
BONNET STUD &NUT |
ASTM A 193 GR.B7 ASTM A 194 GR.2H |
- |
| 13 |
EYE BOLT &NUT |
ASTM A 193 GR.B7 ASTM A 194 GR.2H |
2SET |
| 14 |
HAND WHEEL |
CAST IRON |
1 |
| 15 |
HAND WHEEL NUT |
CARBON STEEL |
1 |
|
| |
|
| Technical Data |
| Manufacturing STD |
: |
BS 1873 |
| Testing & Inspection STD |
: |
API 598/ BS 5146 |
| Face to Face |
: |
ANSI B 16.10 |
| End connections |
: |
Flanged as per ANSI B 16.5 |
| Shell wall thickness |
: |
ANSI B 16.34 |
|
| PRIMARY SERVICE RATING & TEST PRESSURE |
| CLASS |
WORKING PRESS. |
TEMP. |
HYD. TESTPRESS. |
| BODY |
SEAT |
| 400 |
150PSIG |
800° F |
1425 PSIG |
1060 PSIG |
| 600 |
300PSIG |
800° F |
2175 PSIG |
1600 PSIG |
| AIR TEST-SEAT 80 +_10 PSIG |
|
| |
|
| Class - 150 |
| Size |
A |
B |
øC |
øD |
øM |
N |
PCD |
J |
| 25 |
128 |
14.2 |
51 |
108.0 |
16 |
4 |
79.0 |
150 |
| 40 |
164 |
17.5 |
73 |
127.0 |
16 |
4 |
98.5 |
210 |
| 50 |
202 |
19.0 |
92 |
152.0 |
19 |
4 |
120.5 |
210 |
| 65 |
215 |
22.3 |
105 |
178.0 |
19 |
4 |
140.0 |
255 |
| 80 |
242 |
24.0 |
127 |
190.0 |
19 |
4 |
152.0 |
255 |
| 100 |
291 |
24.0 |
157 |
229.0 |
19 |
8 |
190.0 |
405 |
| 125 |
357 |
24.0 |
186 |
254.0 |
22 |
8 |
216.0 |
490 |
| 150 |
407 |
25.0 |
216 |
279.0 |
22 |
8 |
241.0 |
490 |
| 200 |
496 |
28.5 |
270 |
343.0 |
22 |
8 |
298.0 |
610 |
| 250 |
621 |
30.0 |
324 |
406.0 |
25 |
12 |
362.0 |
625 |
| 300 |
699 |
32.0 |
381 |
483.0 |
25 |
12 |
432.0 |
625 |
|
| Class - 300 |
| Size |
A |
B |
øC |
øD |
øM |
N |
PCD |
J |
| 25 |
204 |
17.5 |
51 |
124.0 |
19 |
4 |
89 |
210 |
| 40 |
230 |
20.5 |
73 |
155.0 |
22 |
4 |
114 |
250 |
| 50 |
268 |
22.0 |
92 |
165.0 |
19 |
8 |
127 |
250 |
| 65 |
293 |
25.0 |
105 |
190.0 |
22 |
8 |
149 |
405 |
| 80 |
318 |
28.5 |
127 |
209.0 |
22 |
8 |
168 |
405 |
| 100 |
357 |
32.0 |
157 |
254.0 |
22 |
8 |
200 |
490 |
| 125 |
399 |
35.0 |
186 |
279.0 |
22 |
8 |
235 |
490 |
| 150 |
443 |
36.5 |
216 |
317.0 |
22 |
12 |
270 |
490 |
| 200 |
532 |
41.0 |
270 |
381.0 |
25 |
12 |
330 |
610 |
| 250 |
621 |
47.0 |
324 |
444.5 |
29 |
16 |
387 |
610 |
| 300 |
710 |
51.0 |
381 |
521.0 |
32 |
16 |
451 |
610 |
|
|
| |
Note: Due to constant up gradation, dimensions are subject to change by the manufacturer. |
|
|
