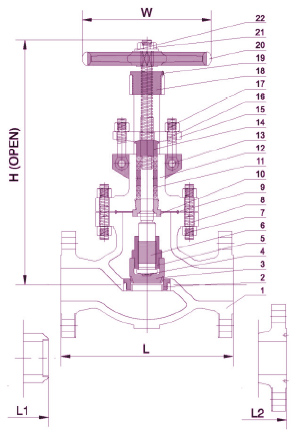

| Globe Valves - ASA Class 400/600 |
Suitable for : - Steam and Oil |
| NO |
DESCRIPTION |
MATERIAL |
QTY |
| 01 |
BODY |
ASTM A 216 GR.WCB |
1 |
| 02 |
BONNET |
ASTM A 216 GR.WCB |
1 |
| 03 |
SEAT RING |
AISI 410 (13%CR) |
1 |
| 04 |
DISC |
AISI 410 (13%CR) |
1 |
| 05 |
STEM |
AISI 410 (13%CR) |
1 |
| 06 |
STEM NUT |
AISI 410 (13%CR) |
1 |
| 07 |
BONNET BUSH |
AISI 410 |
1 |
| 08 |
GLAND |
CARBON STEEL |
1 |
| 09 |
GLAND PACKING |
METALIC WIRE REINFORCED GRAPHITED ASBESTOS |
- |
| 10 |
YOKE SLEEVE |
NI-RESIST |
1 |
| 11 |
BONNET GASKET |
COMPRESSED ASBESTOS FIBRE/SOFT STEEL |
1 |
| 12 |
BONNET STUD &NUT |
ASTM A 193 GR.B7 ASTM A 194 GR.2H |
- |
| 13 |
EYE BOLT &NUT |
ASTM A 193 GR.B7 ASTM A 194 GR.2H |
2SET |
| 14 |
HAND WHEEL |
CAST IRON |
1 |
| 15 |
HAND WHEEL NUT |
CARBON STEEL |
1 |
|
| |
|
| Technical Data |
| Manufacturing STD |
: |
BS 1873 |
| Testing & Inspection STD |
: |
API 598/ BS 5146 |
| Face to Face |
: |
ANSI B 16.10 |
| End connections |
: |
Flanged as per ANSI B 16.5 |
| Shell wall thickness |
: |
ANSI B 16.34 |
|
| PRIMARY SERVICE RATING & TEST PRESSURE |
| CLASS |
WORKING PRESS. |
TEMP. |
HYD. TESTPRESS. |
| BODY |
SEAT |
| 400 |
150 PSIG |
800° F |
1425 PSIG |
1060 PSIG |
| 600 |
300 PSIG |
800° F |
2175 PSIG |
1600 PSIG |
| AIR TEST-SEAT 80 +_10 PSIG |
|
| |
|
| Class 400 |
| SIZE |
A |
B |
øC |
øD |
øM |
N |
PCD |
J |
| 25 |
215 |
23.9 |
51 |
124 |
19 |
4 |
89.0 |
250 |
| 40 |
242 |
28.7 |
73 |
156 |
22 |
4 |
114.5 |
250 |
| 50 |
293 |
31.7 |
92 |
165 |
19 |
8 |
127.5 |
305 |
| 65 |
331 |
34.8 |
105 |
191 |
22 |
8 |
149.0 |
305 |
| 80 |
357 |
38.8 |
127 |
210 |
22 |
8 |
168.0 |
405 |
| 100 |
407 |
41.4 |
157 |
254 |
25 |
8 |
200.0 |
405 |
| 125 |
458 |
44.5 |
186 |
279 |
25 |
8 |
235.0 |
490 |
| 150 |
496 |
47.5 |
216 |
318 |
25 |
12 |
270.0 |
490 |
| 200 |
598 |
54.1 |
270 |
381 |
381 |
12 |
330.0 |
610 |
| 250 |
677 |
60.2 |
324 |
445 |
445 |
16 |
387.0 |
672 |
| 300 |
763 |
63.5 |
381 |
521 |
521 |
16 |
451.0 |
825 |
|
| Class 600 |
| SIZE |
A |
B |
øC |
øD |
øM |
N |
PCD |
J |
| 25 |
214 |
23.9 |
51 |
124.0 |
19 |
4 |
89 |
210 |
| 40 |
242 |
28.7 |
73 |
156.0 |
22 |
4 |
114 |
250 |
| 50 |
293 |
31.7 |
92 |
165 |
19 |
8 |
127 |
250 |
| 65 |
331 |
34.8 |
105 |
191 |
22 |
8 |
149 |
405 |
| 80 |
357 |
38.1 |
127 |
210 |
22 |
8 |
168 |
405 |
| 100 |
433 |
44.5 |
157 |
273 |
25 |
8 |
216 |
490 |
| 125 |
509 |
50.8 |
186 |
330 |
29 |
8 |
267 |
490 |
| 150 |
560 |
54.1 |
216 |
356 |
29 |
12 |
292 |
610 |
| 200 |
661 |
62.0 |
270 |
419 |
32 |
12 |
349 |
675 |
| 250 |
788 |
69.8 |
324 |
508 |
35 |
16 |
432 |
825 |
| 300 |
839 |
72.9 |
381 |
559 |
35 |
20 |
489 |
825 |
|
|
| |
Note: Due to constant up gradation, dimensions are subject to change by the manufacturer. |
|
|
